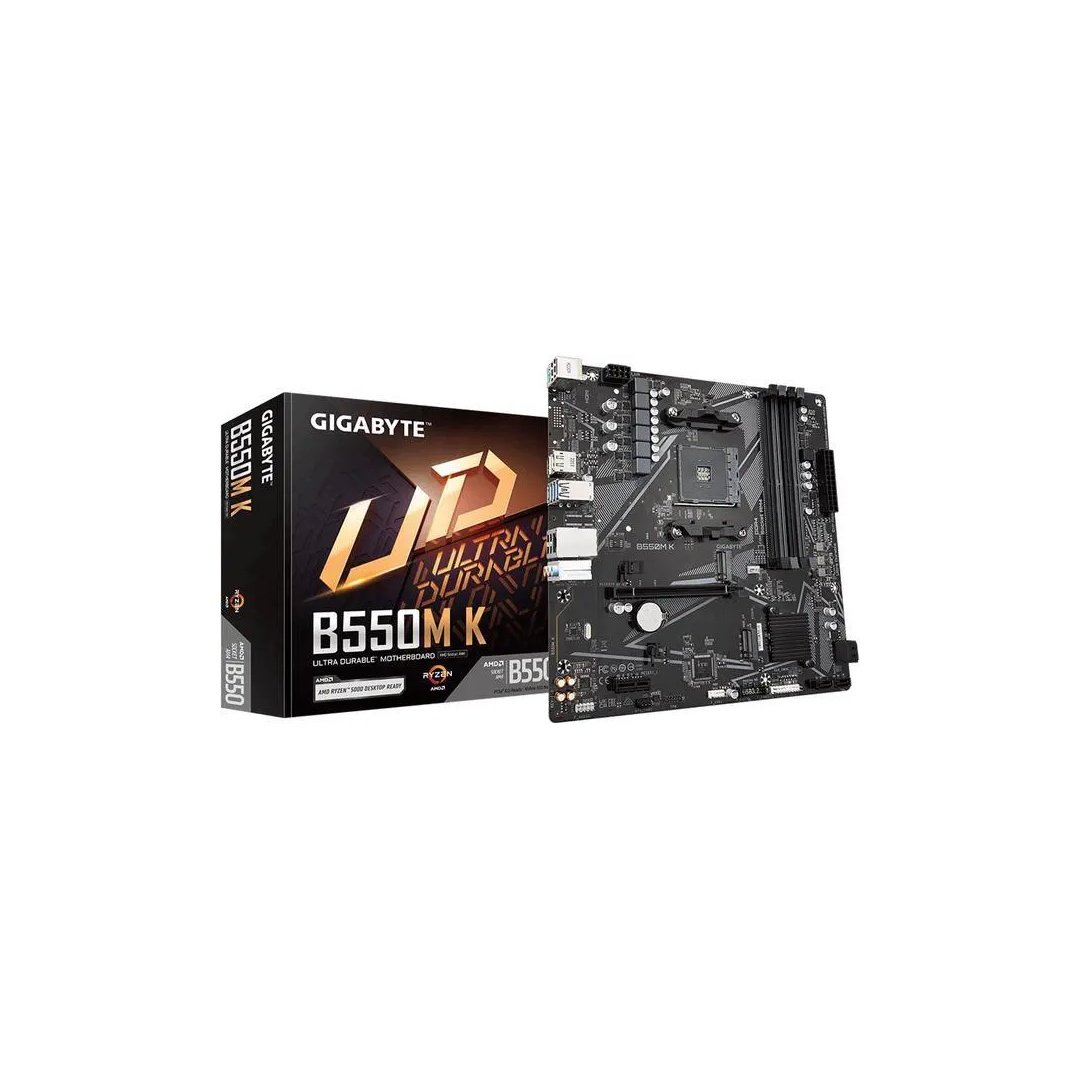

BOARD GIGABYTE B550M – K AM4
$ 370.000
BOARD GIGABYTE B550M-K AM4
Potencia tu PC con tecnología de última generación. Compatible con procesadores AMD Ryzen, esta placa madre ofrece rendimiento sólido, soporte para PCIe 4.0 y componentes ultra duraderos. ¡Listo para llevar tu setup al siguiente nivel!
CategoríasBoard, Board AMD AM4
- Procesador: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Chipset: AMD B550
- Memoria: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules / Dual channel memory architecture / Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* / * ECC memory (ECC mode) support varies by CPU / Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules / Support for Extreme Memory Profile (XMP) memory modules
- Gráficos Integrados: Integrated Graphics Processor with AMD Radeon™ Graphics support / 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. / 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz / * Support for HDMI 2.1 version, HDCP 2.3, and HDR. (Maximum shared memory of 16 GB)
- Audio: Realtek® Audio CODEC / High Definition Audio / 2/4/5.1/7.1-channel / You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- Puertos de Expansión: 1 x PCI Express x16 slot, integrated in the CPU / AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode / Actual support may vary by AMD CPU’s specification / AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode / 1 x PCI Express x1 slot, integrated in the Chipset / Supporting PCIe 3.0 x1 mode
- Interfaz de Almacenamiento: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs / AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs / AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs / 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs / Supporting PCIe 3.0 x2 SSDs / 4 x SATA 6Gb/s connectors, integrated in the Chipset / Support for RAID 0, RAID 1, and RAID 10
- USB: CPU:4 x USB 3.2 Gen 1 ports on the back panel / Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header / 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- Conectores Internos de E/S: 1 x 24-pin ATX main power connector / 1 x 8-pin ATX 12V power connector / 1 x CPU fan header / 1 x system fan header / 2 x M.2 Socket 3 connectors / 4 x SATA 6Gb/s connectors / 1 x front panel header / 1 x front panel audio header / 1 x USB 3.2 Gen 1 header / 1 x USB 2.0/1.1 header / 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) / 1 x Clear CMOS jumper
- Conectores del Panel Trasero: 1 x PS/2 keyboard/mouse port / 1 x DisplayPort / 1 x HDMI port / 4 x USB 3.2 Gen 1 ports / 4 x USB 2.0/1.1 ports / 1 x RJ-45 port / 3 x audio jacks
- Controlador de E/S: iTE® I/O Controller Chip
- Diseño: Micro ATX Form Factor; 24.4cm x 24.4cm
